Cal Royal CRPT-2 AL Concealed Power Transfer

Regular price

Quantity: In Stock

SKU: CRPT-2 AL

Choose from the following options:

Qty:
Cal Royal ALRM9800EO36  Alarm Exit Hardware Cal Royal ALRM9800EO36  Alarm Exit Hardware

Cal Royal ALRM9800EO36 Alarm Exit Hardware

$592.00

Cal Royal ALRM2200EO36 Exit Alarm Panic Bar Cal Royal ALRM2200EO36 Exit Alarm Panic Bar

Cal Royal ALRM2200EO36 Exit Alarm Panic Bar

$399.00

Cal Royal Alarm 7700 Panic Bar Cal Royal Alarm 7700 Panic Bar

Cal Royal Alarm 7700 Panic Bar

$729.00

  • Description

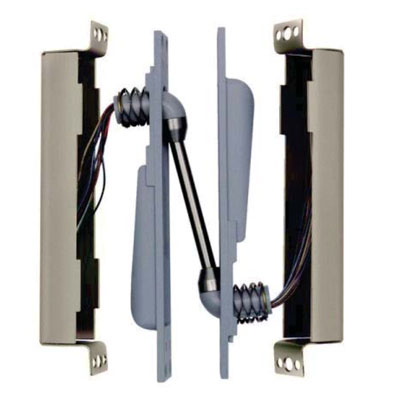

The Cal Royal CRPT-2 Concealed Power Transfer is a device that will transfer electrical power from a door frame to the edge of a swinging door. This is useful for an installation which involves heavy traffic. the unit is completely concealed when the door is closed.

Features

  • CRPT-2, CRPT-10 and CRPT-10C are designed to transfer electrical power from the frame to the door in a very secure manner
  • UL 10C-Listed for up to 3 hours for Fire Rated doors and frames, Standard 7-2, "Fire Test of Door Assemblies" (1997)
  • UL-Listed as Miscellaneous Fire Door Accessories
  • Classified according to Uniform Building Code (UBC)
  • Unit is mortised into the edges of the door and frame and is completely concealed when door is in the close position
  • Designed for use in high traffic openings
  • Packaged individually with fasteners for wood, steel or aluminum doors and frames
  • All parts are made of metal including back boxes - no plastic parts
  • Crimp connectors are supplied for a more secure and clean connection
Specifications
  • Housing - 9" x 1 1/4" x 1 5/8"
  • Minimum door thickness - 1 3/4"
  • Two 24 gauge wires
  • 1 amp at 24VDC, with a 16 amps maximum surge
